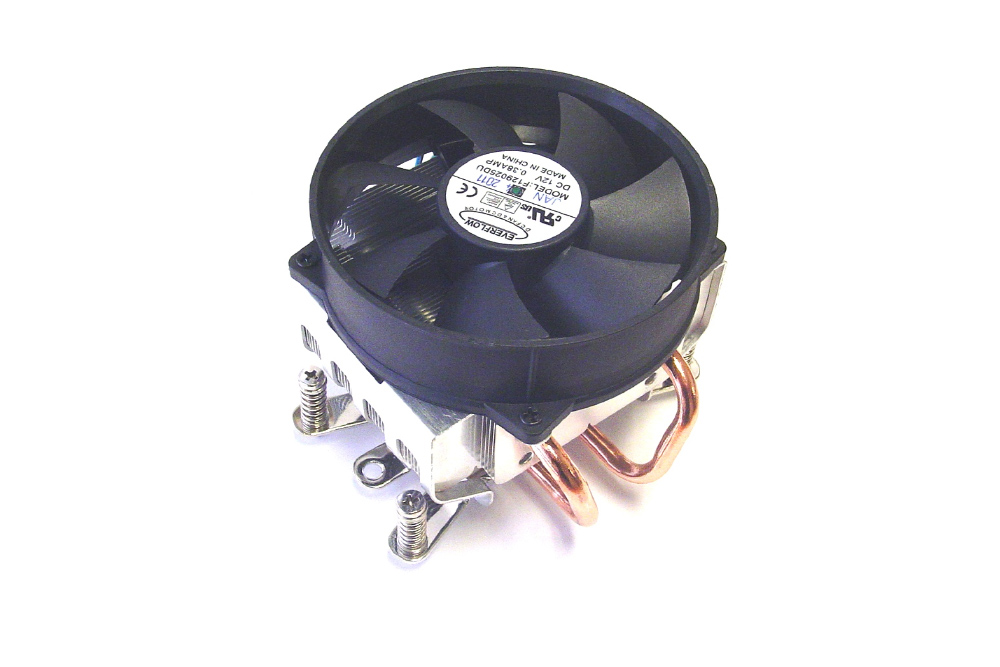

Product Display

Model # BOS-HQ2
·         Application : For Intel® AMD® FX, Athlon FX, Phenom, Athlon & Sempron Socket F/AM3/AM2
·         Dimensions : 102 mm (L) x 96 mm (W) x 78 mm (H)
·         Materials : AL 6063 with 2 heatpipes embedded
·         Weight: TBA
·         PWM Function: YES
·         Thermal Grease:  Dow Corning SC102

Fan Specifications:
·         Fan size: 90x90x25mm
·         Fan voltage: 12V
·         Bearing: Ball bearing
·         Fan speed: 1000~ 4500 rpm
·         Noise Level: 21~49 dBA
·         Air Flow: 16.57~76.92 CFM
·         Power :  0.96~ 4.56 W
·         Static pressure : 0.4~8.3 mmH2O
·         Life Expectance: 40,000 hours @40C with 65% RH
·         Fan connector: 4-pin
·         Lead wire: UL1430 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
