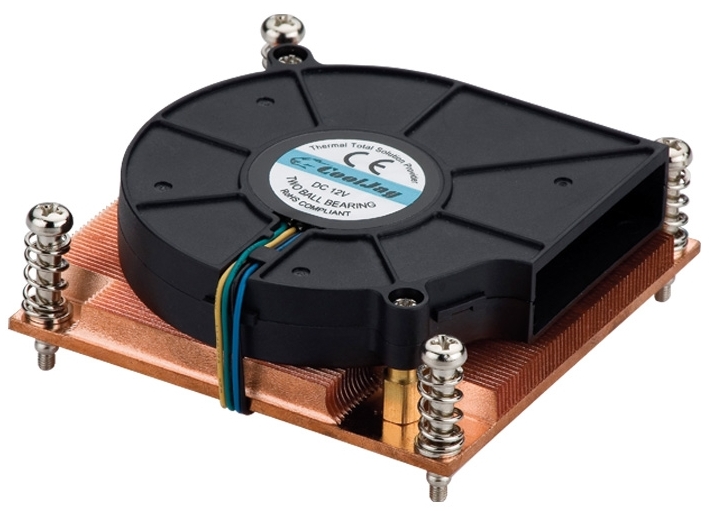

• Application: Intel® Core® i7 & Xeon® E5-4600, E5-2600 & E5-1600 Series Socket 2011
• Dimensions: 90mm (L) x 90mm (W) x26.4mm (H) << Square Type 80mm mounting pitch >>
• Material : Copper CU1100
• Fin Pitch : 1.2 mm
• Fin thickness : 0.3 mm
• Weight : 540 g
• Thermal Grease: Shin-Etsu 7762 Preprint
Fan Specifications:
• Fan Voltage: 12V (Operating range 7~13.2V)
• Bearing: Dual Ball Bearing
• Fan Speed: 1500~6600 rpm +/-10% with PWM function
• Noise Level: 62.1 dba
• Air Flow: max. 21.35 CFM
• Power: 15.6 W (max. 18W)
• Operating Temperature: -10C~70C
• Storage Temperature: -20C~75C
• Life Expectancy: 70,000 hrs @40C with 15%~65% RH
• Static Pressure: 59.6 mmH2O
• Fan Connector: 4-pin
• Lead wire: UL1061 #26AWG or equivalent
• Pin Assignment: Pin 1 Black (GND), Pin 2 Red (PWR), Pin 3 Yellow (SGN), Pin 4 Blue (PWM)
